Roller type area measuring machine. High precision and maximum flexibility with any type of soft leather

View product »

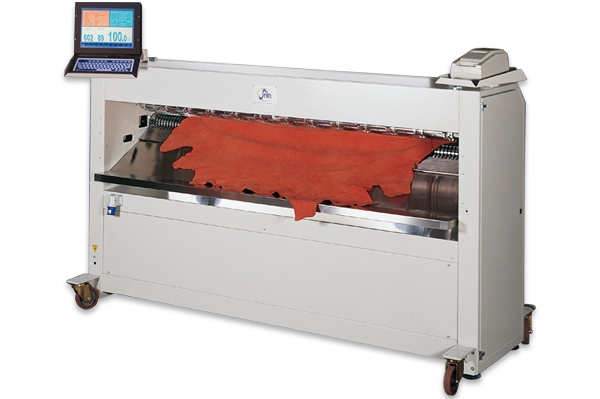

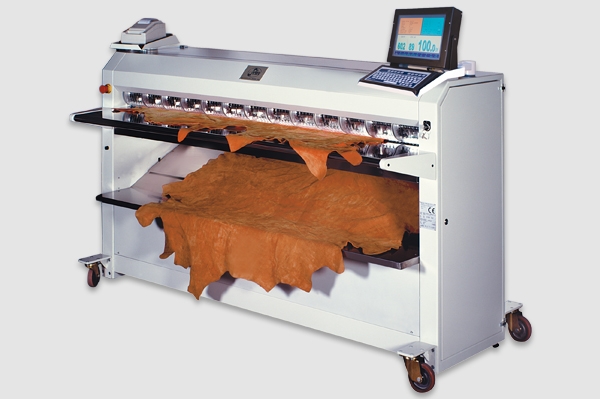

Electronic measuring machine for finished leathers

General features

Reduced sizes, high accuracy and flexible use measuring machine suitable to measure every type of soft or firm leather.

The measuring system with independent rollers allows the stretching and the perfect detection even of the most irregular leathers.
The measuring rollers with two stainless steel swing-arms (patented), the main chromium plated steel conveying rollers and the stainless steel creeping tables grant high reliability and long life.

The machine may be used with one operator back-feed measuring mode or two operators through-feed measuring mode:

  • the model ROLLMIR-S has a creeping table at two positions

A revolving operator interface with video and keyboard grants a clear reading-out of the measuring data and an easy and quick access to all the machine functions, it's also completed by a quick bicolour alphanumerical printer.



  • Measuring rollers with two stainless steel swing-arms
  • High precision measurement with 20 mm. reading pitch
  • Multiprocessor electronic


Available models and dimensions

(A width, B lenght, C height, mm)

1600 1870 1100 1740
2100 2350 1100 1740
3200 3470 1100 1740


Request info

For further information about this product, click here and fill the form below »



Selin Projects targets its measuring machines for finished leather or wet blue leathers and its electronic systems to the tanning industry sectors and to the districts specialized in the various commodity destinations: footwear, leather goods, furniture, leather clothing, automotive.
